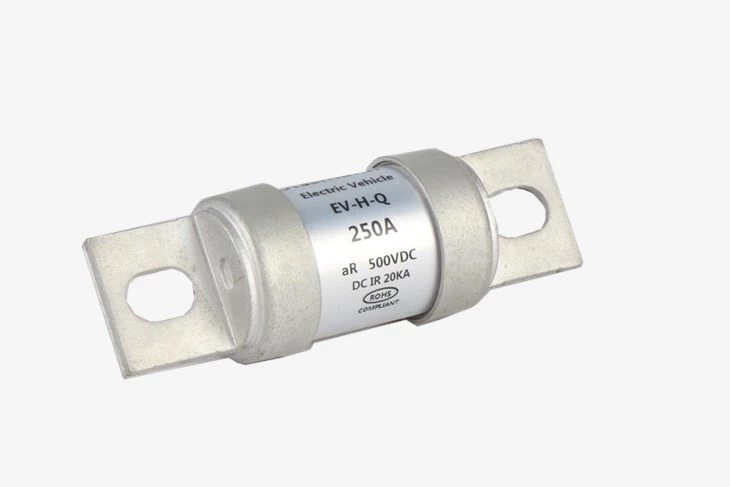

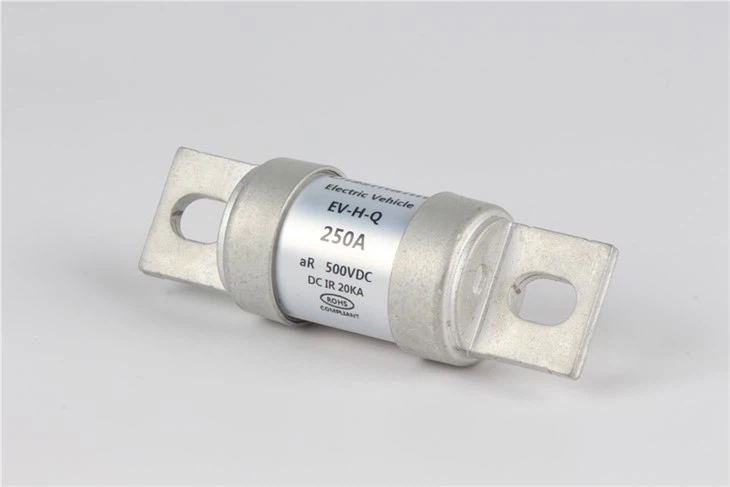

Poly Fuse
Rated Voltage:AC/DC500V
Rated Current:10A-500A
Type protection:aR
Breaking Capacity:DC20KA/AC100KA
Executive Standard:UL248-20、ISO8820、JASO-D622、RoHS compliant
Installation:Bolt on
Küsi pakkumist
Product Details ofPoly Fuse
500VDC EV series fuses use for truck protection
Product details of the EV series fuse
This EV series fuse is rated at 500V and offers a bolt-on fuse for electric vehicle drive power system protection.Current rating 10A-500A;The dimension and performance conform to UL248-20、ISO8820、JASO-D622、RoHS compliant.
Application of the EV series fuse
Applicable for electric vehicle drive power system, Energy storage and power batteries, Energy storage capacitor, Frequency conversion controller, charger, wire and other automotive parts and equipment’s short circuit, overload and backup protection.

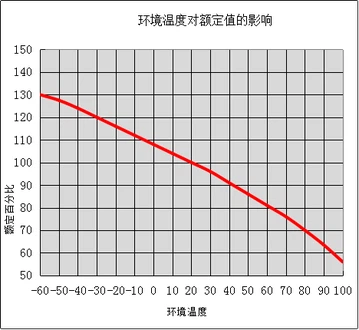

Current characteristic curve of the EV series fuse
Dimension of the EV series fuse(mm)
|
Model |
Size code |
A±2 |
B±1.5 |
C±1 |
D±1.5 |
F±1 |
G±0.5 |
H±0.2 |
J±1 |
|
EV-H-Q |
VH1 |
94.5 |
30.5 |
52.5 |
74.5 |
9 |
25 |
4 |
13 |
|
VH2 |
119.5 |
37 |
56.5 |
88.5 |
11 |
25 |
6 |
15 |
Feedback
1. After receiving items, Buyer’s early confirmation will be highly appreciated
2. Because your feedback is very important for the development of our business, we sincerely invite you to be satisfied with our products and services. Essence
3. Please contact us before leaving any negative or neutral feedback. We will solve any problems with us. Thank you for your understanding.
FAQ
Question:Do you have dealer or distributor in Vietnam?
Answer:At present, we have no fixed dealer or distributor in other countries
